Cone Bottom Tank Trailer
Portable Dual Cone Bottom Tank Trailers for Agriculture

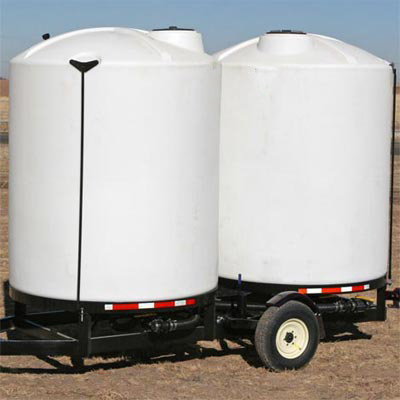

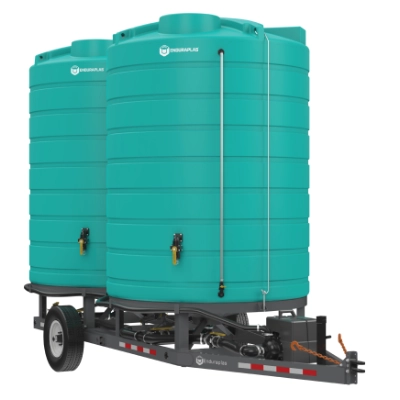

The cone bottom tank trailer is built for agriculture, giving farms and ranches a portable way to move water, liquid fertilizer, and crop protection products around the operation. Available as dual 2,500 gallon tanks (5,000 gallons total) or dual 3,000 gallon tanks (6,000 gallons total), each cone bottom tank on a water trailer can be plumbed separately to carry two different solutions at once, or together to fill sprayers and water wagons in fewer trips.
Dual Cone Bottom Tank Trailer Specifications
| Specification | 2 x 2,500 Gallon | 2 x 3,000 Gallon |
|---|---|---|
| Tank | Dual 2,500 gallon cone bottom tanks | Dual 3,000 gallon cone bottom tanks |
| Tank Capacity | 5,000 gal total | 6,000 gal total |
| Dimensions (L x W x H) | 252" x 100" x 158" raised / 146" lowered | 252" x 100" x 158" raised / 146" lowered |
| Frame | 6" x 2" rectangular tubing | 6" x 2" rectangular tubing |
| Axles / Suspension | 2 x 3,500 lb spindle | 2 x 3,500 lb spindle |
| Tires | 235/80 R16 10 PLY highway tire on ag wheel | 235/80 R16 10 PLY highway tire on ag wheel |
| Hitch | 20,000 lb clevis | 20,000 lb clevis |
| Empty / Dry Weight | 2,600 lbs | 2,800 lbs |
| Pump | 2" or 3" Banjo centrifugal poly (optional) | 2" or 3" Banjo centrifugal poly (optional) |
| Engine / Motor | Honda GX160 5.5 HP or GX200 6.5 HP (optional) | Honda GX160 5.5 HP or GX200 6.5 HP (optional) |
| Manifold / Hose | 3" feed / 2" or 3" discharge Banjo sweep manifold; selectable 2" or 3" hose | 3" feed / 2" or 3" discharge Banjo sweep manifold; selectable 2" or 3" hose |
| Lighting | Optional DOT compliant clearance/stop/turn/tail lights | Optional DOT compliant clearance/stop/turn/tail lights |
Cone Bottom Tank Trailer Features
- Available in 5,000 or 6,000 gallon dual-tank capacity
- 100% draining cone bottom tanks for clean chemical changeovers
- Tanks plumbed separately for two solutions or together for volume
- 6" x 2" rectangular tubing frame
- Hand-pumped hydraulic lift system
- 20,000 lb clevis hitch
- Optional DOT-compliant clearance, stop, turn, and tail lights
Cone Bottom Tank Trailer Benefits
- Carries water, liquid fertilizer, and crop chemicals
- Full drain leaves no product behind
- Easy to fill and tow around the farm
- Large volume means fewer trips during spraying season
Cone Bottom Tank Trailer Details

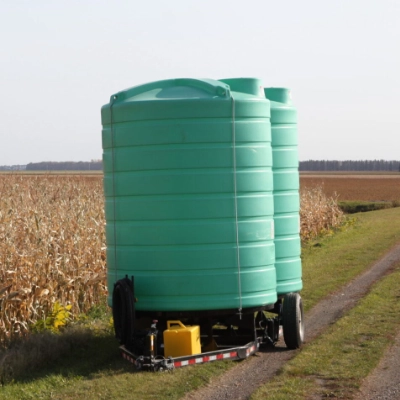

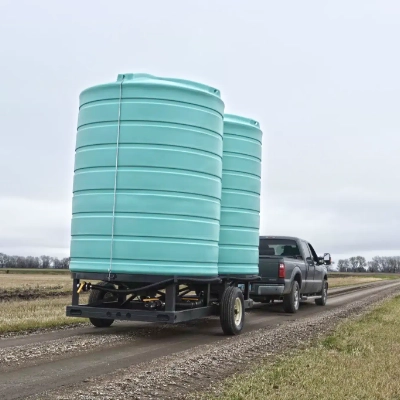

The cone bottom tank trailer features a 6" x 2" rectangular tubing frame with selectable 2" or 3" plumbing and a Banjo sweep manifold. A hand-pumped hydraulic lift system lowers the frame to the ground, so the dual cone bottom tanks can be filled with ease right in the field. Towed empty and lowered for filling, the trailer keeps liquid handling close to where crops, livestock, and equipment need it, and the 100% draining cone bottom tanks empty completely for fast, clean changeovers between products.
Because the hydraulic lift system raises and lowers the frame by hand, the trailer can be set up in minutes, keeping liquid storage transport moving during planting, spraying, and harvest. Optional DOT-compliant clearance, stop, turn, and tail lights are available, along with optional 2" or 3" Banjo centrifugal poly pump and Honda engine packages for transferring product on the move. Interested in just the cone bottom tank? We can supply those too. Give us a call at 863-261-8388 for more information.
Filling the Cone Bottom Tanks
On the farm, the cone bottom tanks can be loaded with water, liquid fertilizer, or crop protection chemicals depending on the season and the job. The trailer can carry a variety of liquids, although EPA regulations allow only one type of liquid per tank, so the two-tank setup lets you keep separate products ready at the same time. The poly cone bottom tanks feature ribbed walls, reinforced roofs, and a full-drain cone bottom that empties 100% of the contents between loads, which makes rinsing and switching between products much easier.
For freeze protection for your water trailer or skid, our Water Trailer Heater Blankets are exactly what you need . When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!
Frequently Asked Questions
Cone Bottom Tank Questions and Answers
Many cone bottom tanks are very large and can become extremely heavy when filled. Having a way to move a cone bottom storage tank around is essential to completing many job functions. For larger tanks, portable trailers are often the easiest and most effective transportation option. One Clarion cone bottom trailers are designed to easily transport cone bottom tanks around your site.
Cone bottom trailers can be a great tool for filling water wagons, sprayers and washers. To use a cone bottom trailer, move it empty to your desired location. Then, remove the transport stops from the axles. When the pressure is relieved from the hydraulic cylinder, the frame will settle on the ground. The 3,000 gallon cone bottom tanks are then ready to be pumped, which can be done separately or together.
