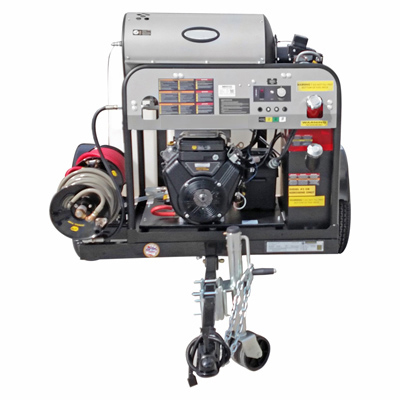

Hot Water Pressure Washer Trailer System
Heavy-Duty Industrial Hot Water Pressure Washer
The hot water pressure washer trailer system is built to tackle demanding commercial and industrial cleaning jobs with ease. Versatile enough to function as either a cold-water or hot-water power washer, it is ideal for contract cleaners, mobile detailers, municipalities, and resorts.
Built for mobile work, the gas and diesel power options let you pull up to the worksite, connect the spray gun, and start cleaning, no complicated setup required. The brake-equipped 225 and 525 gallon models are road legal for over-the-road towing. Enjoy fast setup and durable, high-performance pressure washing power right at your fingertips.
Explore our full range of Commercial Pressure Washer Trailers to find the perfect solution for your needs.
Hot Water Pressure Washer Trailer System Specs
Compare every configuration by tank capacity. Specs shared across a capacity are listed beneath its table.
200 Gallon Models
| Specification | 95005 | 95016 |
|---|---|---|
| Part Number | TRSC4040232E | TRSC4040132E |
| Engine | Honda GX390 (389cc), electric start | CRX 420 (420cc), electric start |
| Pump | COMET Triplex, direct drive (3450 RPM) | COMET Triplex, direct drive (3450 RPM) |
| GPM | 4 | 4 |
| PSI | 4000 | 4000 |
| Axle | Single 3,500 lb | Single 3,500 lb |
| Brakes | N/A | N/A |
| Dry Weight | 1,300 lbs | 1,300 lbs |
225 Gallon Models
| Specification | 95158 | 95166 |
|---|---|---|
| Part Number | TRS23555251E | TRS23555151E |
| Engine | Honda GX690 (688cc), electric start | CRX 680 (679cc), electric start |
| Pump | General Pump Triplex, belt drive (1750 RPM) | General Pump Triplex, belt drive (1750 RPM) |
| GPM | 5.5 | 5.5 |
| PSI | 3500 | 3500 |
| Axle | Single 3,500 lb | Single 3,500 lb |
| Brakes | Electric | Electric |
| Dry Weight | 1,500 lbs | 1,500 lbs |
525 Gallon Models
| Specification | 95169 | 95170 | 95171 | 95173 | 95156 | 95157 |
|---|---|---|---|---|---|---|
| Part Number | TRS33555231E | TRS33555251E | TRS33555131E | TRS33555151E | TRS3D4060441E | TRS33550241EAC1 |
| Engine | Honda GX690 | Honda GX690 | CRX 680 | CRX 680 | Kubota D902 (diesel) | Honda GX690 |
| Pump Brand | COMET | General Pump | COMET | General Pump | UDOR | UDOR |
| GPM | 5.5 | 5.5 | 5.5 | 5.5 | 6 | 5 |
| PSI | 3500 | 3500 | 3500 | 3500 | 4000 | 3500 |
| Brakes | Electric | Electric | Electric | Electric | Hydraulic | Hydraulic |
| Dry Weight | 3,500 lbs | 3,500 lbs | 3,500 lbs | 3,500 lbs | 3,800 lbs | 3,500 lbs |
| Notable | Standard | Standard | Standard | Standard | Diesel, highest output | 120V burner, generator, duplex outlet |
Industrial Hot Water Pressure Washer Features
- 200, 225, and 525 Gallon Configurations
- Gas and Diesel Power Options
- 4 to 6 GPM at 3,500 to 4,000 PSI
- Operates as a Hot or Cold Pressure Washer
- Maximum Temperature Rise of 120 Degrees F
Industrial Hot Water Pressure Washer Benefits
- Made in the USA
- Rugged, Reliable Performance
- Use for municipalities, resorts, mobile detailers, and more
*Price quoted includes freight within the continental United States. For other destinations, please contact us for pricing.
Hot Water Pressure Washer Trailer System Details

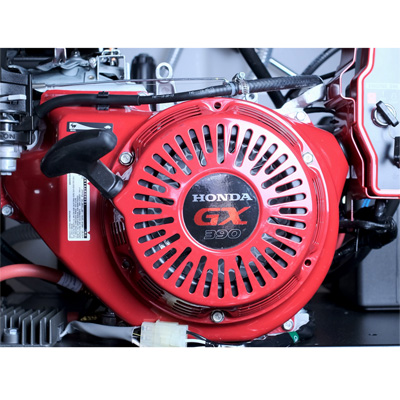

The hot water pressure washer trailer system is offered in 200, 225, and 525 gallon configurations, so you can match tank capacity and output to the scale of the job. Gas power options run from the Honda GX390 up to the Honda GX690, with CRX engines available across the line and a Kubota diesel option on the 525 gallon unit.
The compact 200 gallon models (95005 and 95016) are single-axle units built for mobile detailers and quick-response crews, delivering 4 GPM at 4,000 PSI with electric-start engines and low oil shutdown. The 225 gallon models step up to 5.5 GPM on belt-drive pumps with electric brakes, road legal for over-the-road towing. The 525 gallon models add dual axles, larger hose reels, and outputs up to 6 GPM, also road legal, for high-volume industrial and municipal cleaning.

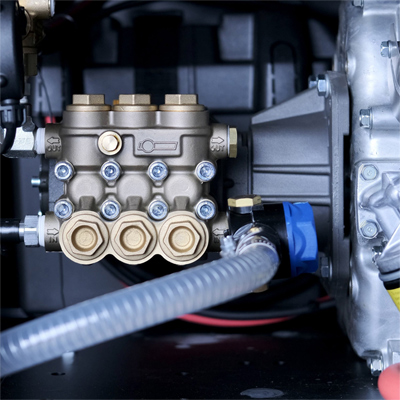

Every configuration runs a commercial triplex pump (COMET, General Pump, or UDOR depending on model) for consistent performance under heavy, sustained use. (Please note: gas engine models are 49-state / EPA compliant and cannot be shipped to California.)
A dedicated burner powers the hot water system, delivering a maximum heat rise of 120°F for superior cleaning power. The burner can also be turned off when needed, allowing you to operate the system as a cold-water pressure washer.
Compatible detergents include:
- Heavy Duty Pressure Washer Detergent
- Multi-Purpose Pressure Washer Surface Cleaner
- Environmentally-Friendly Pressure Washing Solution
Heated Pressure Washer Trailer Applications
The portable hot water washer delivers reliable, rugged performance for a wide range of commercial and industrial applications. Companies, municipalities, and individual contractors rely on this industrial hot water power washer for cleaning projects, wash-downs, and sanitizing operations.
It excels at cleaning playgrounds, building exteriors, farm and construction equipment, sidewalks, and concrete steps. With a maximum heat rise of 120°F, the industrial-grade washer easily handles high-intensity cleaning jobs that demand more than 20 hours of use per week.
Additional applications include boat cleaning, pool deck maintenance, exterior home cleaning, and more.
For freeze protection for your water trailer or skid, our Water Trailer Heater Blankets are exactly what you need . When cold weather affects the viscosity of fuel, fluids, and other materials you can lose production time, adding additional costs. Power blankets keep your tanks and smaller corrugated/steel tanks at constant temperature, preventing fluids from freezing in extreme conditions. We customize thermal blankets to meet your specific needs, no matter the tank size or shape. Call us today to find out more!
Frequently Asked Questions
The maximum temperature heat rise is 120 degrees F. The wattage of the heater coil is 12 volt oil fired burner that uses #2 diesel.
All-purpose pressure washer detergents and non-caustic detergents and soaps will work with these pressure washer trailers. Any pressure cleaning soaps will work as long as you are going through chemical injection and using the soap tip. For a complete list of compatible soaps, please contact our sales team for more information.
