Elliptical Tank
Elliptical Poly Tanks for Water
Elliptical tank models are FDA-approved for safe potable water storage. Built for durability and convenience, elliptical water tanks feature a low-profile design that improves visibility when transporting with a front loader. Their lower center of gravity enhances stability during transport, making them ideal for mobile water storage applications.
Elliptical Tank Features
- 300, 500 or 1,000 gallon sizes
- FDA approved for potable water
- High impact strength
Elliptical Tank Benefits
- Side fillwell for easy filling and cleaning
- UV Stabilized for outdoor use
- 5 year limited warranty
Elliptical Water Tank Details

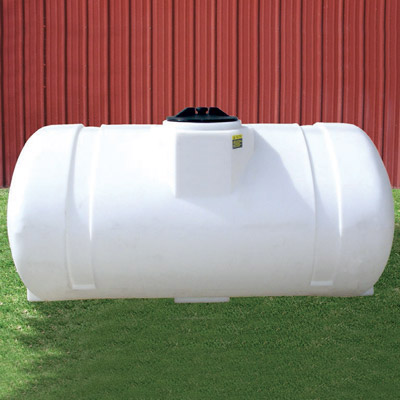

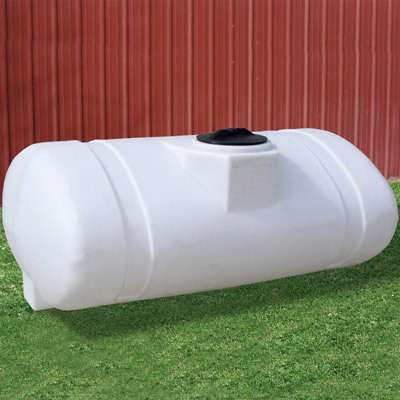

The elliptical water tank is constructed from high-impact virgin polyethylene resin and UV-stabilized for extended outdoor use. Durable poly legs provide sturdy support and make handling easier during installation. This poly portable water tank is FDA-approved for safe potable drinking water storage.
The 300- and 500-gallon elliptical tanks feature a side-mounted fillwell with a 10" vented lid for easy filling access. An integrated sump allows for complete and efficient cleanout of the tank, while a clearly marked gallonage indicator on the tank’s end helps you monitor water levels at a glance.
Fittings and accessories are made of durable polypropylene, while cradles and bands are constructed from corrosion-resistant stainless steel. An algae-resistant black color option is also available for enhanced water protection. Each tank comes with a 5-year limited manufacturer’s warranty for added peace of mind.
Optional features include suction, return, agitation, and quick-fill fittings to customize the tank for your specific application.
Elliptical Tank Specifications
| Elliptical Tank Size | 300 Gal | 500 Gal | 1000 Gal |
|---|---|---|---|
| Length | 72" | 82" | 87" |
| Width | 48" | 57" | 78" |
| Height | 30" | 36" | 51" |
| Band Width | 82" | 91" | 56" outside 28" outside to center |
| Weight | 90 lb. | 130 lb. | 300 lb. |
Elliptical Poly Tank Applications

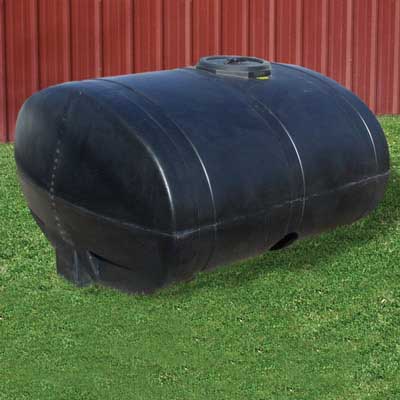

Thanks to their low profile and low center of gravity, elliptical leg water tanks are ideal for storing potable or non-potable water, providing backup water supplies for farms, and supporting fire suppression efforts. UV stabilization ensures the tank can be safely stored outdoors without degrading. Choosing a black elliptical tank further protects stored water quality by reducing algae growth.

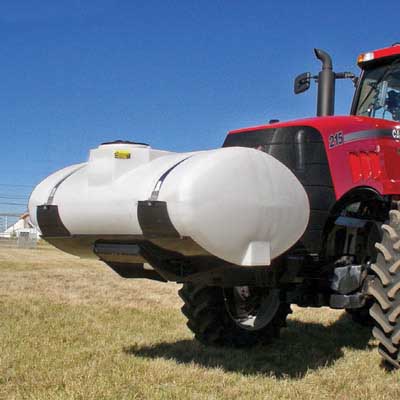

Built-in impact-resistant poly legs provide forklift clearance, making it easy to transport the tank with a forklift or front loader. Tanks can be mounted on stands to increase water pressure or installed on trailers for mobile spray applications.
Elliptical Tank Frequently Asked Questions
Elliptical leg tanks are often used when the water tank needs the ability to be moved to different locations on the job site. The legs provide clearance so that a forklift's tines can fit below the tank for safe lifting even when the tank is full.
Elliptical water tanks provide a lower profile. This means that it is easier to see over them for the safety of the forklift operator when moving the tank from one location to another on grounds. Elliptical water tanks also have a lower center of gravity than round tanks. This translates into them being more stable, especially during transportation.
Yes, we offer a wide variety of portable water tanks and water tank trailers, ranging in size and features to fit your project.
