Cone Bottom Liquid Feed Trailer

1020 and 1320 Gallon Cone Bottom Trailer

Cone Bottom Liquid Feed Trailer of 1020 and 1320 Gallon Capacity are a portable mobile cone-bottom tank trailers. The cone bottom tank trailers can be used for a variety of applications. Because the cone bottom tank trailers are 100 percent drainable, they are great as fertilizer water trailers and for other agricultural applications. Use them for potable or non potable water storage, on the highway with DOT components or on the backroads of your property. Interested in our other water trailers for sale? Contact Us for more information. For more information, see our Nurse Water Tank Trailer video below.

*Inventory levels change continually and vary by location and features required. Call for availability.

Get a Quote   or Call us! 863-261-8388

Looking for other features? We have an assortment of water trailer vendors with an extensive offering of styles, sizes, and components at exceptional pricing. All capacities listed are for use with water storage. We ship from warehouses across the U.S. and our team will work with you to provide the equipment that fits your needs, delivered within the time frame that you need it. Contact Us for information on other liquid storage options.


Cone Bottom Liquid Feed Trailer Features

  • 1020 or 1320 Gallon Capacity
  • Portable, Mobile Cone Bottom Tanks
  • 2,000 lbs. Heavy Duty Jack

Cone Bottom Liquid Feed Trailer Benefits

  • Heavy Duty Components and Materials
  • Pump Mounting Inside Frame
  • Portable Fertilizer and Water Transport

1020 and 1320 Gallon Cone Bottom Liquid Feed Trailer Details


Cone bottom liquid feed trailers have tanks that are 100 percent drainable, making them perfect for fertilizer and agricultural applications. The 1020 and 1320 gallon cone bottom tank trailers are portable, mobile cone bottom tank trailers that can be safely moved while full. For the 1020 and 1320 gallon cone bottom liquid feed trailers, both units have a 2000 lbs. Heavy Duty Jack. For the 1020 gallon cone bottom tank trailer there is a 6,000 lbs./axle slipper spring suspension and for the 1320 gallon cone bottom tank trailer there is a 8,000 lbs./axle slipper spring suspension.

The cone bottom liquid feed trailer frames have powder coat paint and pump mounting inside the frame for greater protection. The cone bottom liquid feed tanks have a 3 or 5 year non prorated warranty. We have different options for you to make your cone bottom liquid feed trailer custom to fit your needs. Options include: plumbing packages of 2" and 3", Inductor units, filling platform, fenders, lights, and the option to make your tank black to block out light, inhibiting algae growth. Because the 1020 and 1320 gallon cone bottom tank trailer are mobile, portable cone bottom tank trailers, you can have them outfitted with DOT options like fenders, lights, and electric brakes with radials and lights. These customizations will allow you to take the trailer and tank on public roads.

We also carry stationary cone bottom liquid feed trailers that range in capacities of 1020 to 3000 gallons. If stationary cone bottom tank trailers are what you're looking for, you can find them on the non Mobile Cone Bottom Tank Trailer page.

1020 and 1320 Gallon Cone Bottom Liquid Feed Trailer Specs

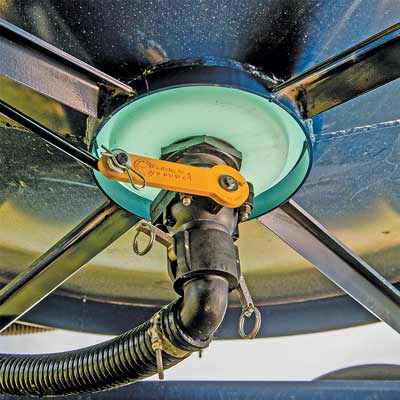

Tank 1020 gallon Norwesco Tank, top fill port, bottom dispensing port/drain
1320 gallon Norwesco Tank, top fill port, bottom dispensing port/drain
3 or 5 year nonprorated warranty
Supports Heavy Duty cross member tank supports
Frame Extra heavy-duty 6" channel iron frame, powder coated
5-year warranty
Axle Extra heavy-duty high-speed cambered tandem axles
1020 Gal 6,000 lb slipper spring suspension
1320 Gal 8,000 lb slipper spring suspension
Tires 11L x 15 8 ply tires
15 x 10 wheels
2000 lbs. Heavy Duty Jack
Extras Adjustable hitch clevis
Step platforms

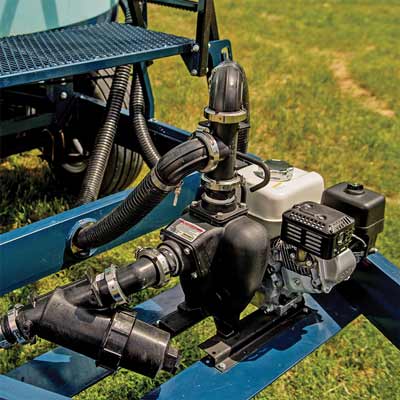

Optional Many options for pumps and engines are available that can be mounted within the frame for greater protection.

Cone Bottom Liquid Feed Trailers Downloads

Cone Bottom Liquid Feed Trailers Applications

The cone bottom liquid feed trailer is ideal of agriculture fertilizer applications because of the 100 percent drainable tank. The cone bottom tanks are reliable sources of water and chemical or fertilizer storage for farms, rural properties, campuses, campgrounds, and more. With the DOT or non DOT options, you can take your cone bottom tank trailer on the open road, from jobsite to jobsite. With the other options for liquid feed tanks and trailers (check our 525 and 1000 gallon DOT water trailer) we offer you will find reliability and durability. The liquid feed tank set up, eductors, and pump options will meet your gallon-per-minute (gpm) requirements and second discharge options if you are using two separate products. We have black iron or polypropylene pipe fitting, exclusive tank mixing eductors, and 2" full port bolted valves. Standard plumbing includes bottom load through a valve assembly, suction from the tank or tanks to the pump, recirculation back to each tank and a discharge line.

Cone Bottom Liquid Feed Trailers FAQs

For larger cone bottom liquid feed trailer options, we have what we call stationary cone-bottom tank trailers, ranging from 1020 to 3000 gallons. They are on a trailer, so the empty tank can be moved where needed on site. You can remove the tank from the trailer for stationary liquid storage, or leave it on the trailer. However, when full, the tank needs to stay in place and not move. These cone bottom tank trailers are delivered to your location when empty, you fill them and keep them in place, storing the water or water-based chemical solution for as long as you need it. The larger cone bottom tanks are fully drainable as well.

The cone bottom tanks for liquid feed trailers can often be very tall. The mobile 1020 and 1320 gallon cone bottom tanks are shorter and more easily moved, but we do have options to secure the tanks to the trailer. We have both poly and steel cone bottom tank stands and tie does. Both the cone bottom stands are 91" in diameter for the cone bottom tanks 1020, 1320, 1720, 2500, and 3000. Poly cone bottom tank stands are for 1050, 1600, 2500, and 3000. Steel cone bottom tank stands are for 2500, 3000, 550, 6000, and 7500 gallon capacities. The tie down rods we offer are especially needed for holding the cone bottom tank in place and giving stability.
